Gear Motor Permanent Magnet DC Reduction Gear Motor Adjustable Speed (Reduction Ratio 180,12RPM)

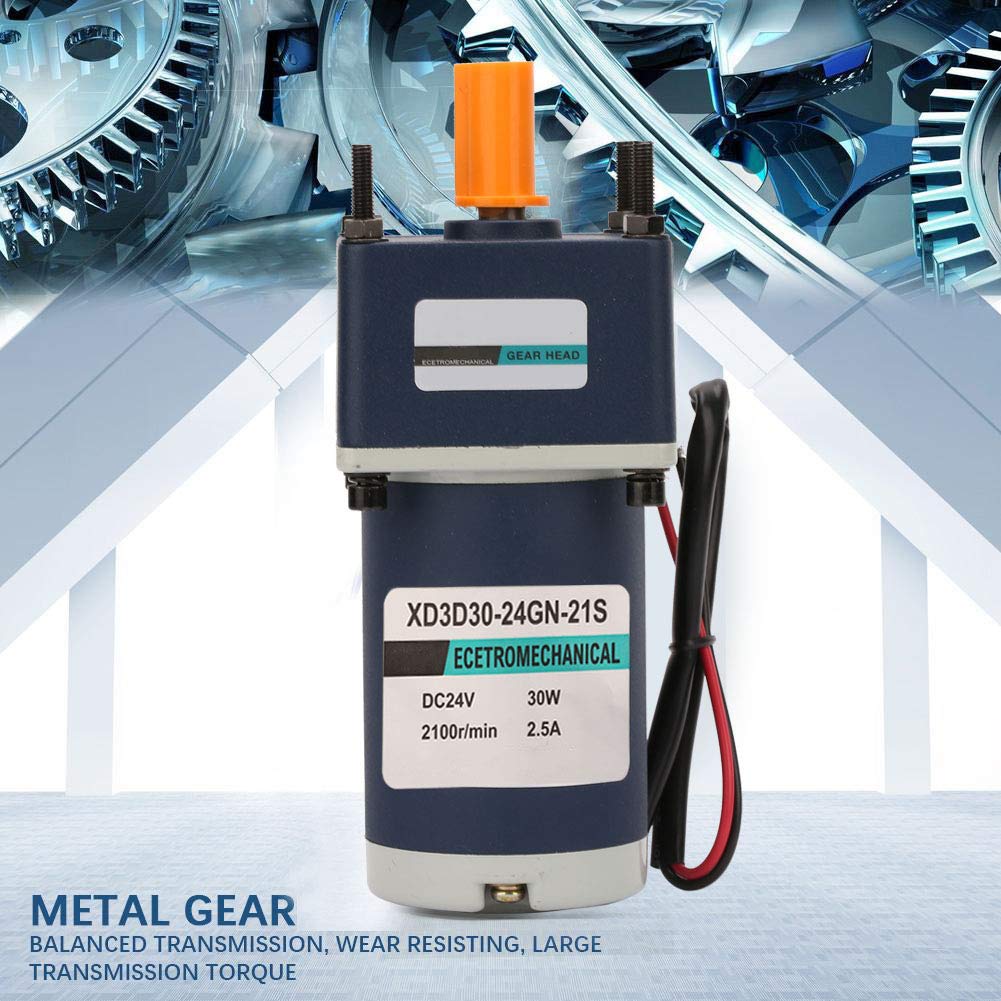

Specification: Model: XD3D30-24GN-21S Power: 30W Motor no-load speed: 2100RPM Motor no-load current: 0.3A Motor load speed: 1800RPM Motor load current: 2.5A UE: 0.87kg.cm Insulation class: Class B Motor size: 70*70*174mm / 2.8*2.8*6.9in Output shaft size: 8*29mm / 0.3*1.1in Reduction ratio 3, 700RPM Reduction ratio 5, 420RPM Reduction ratio 7.5, 280RPM Reduction ratio 10, 210RPM Reduction ratio 12.5, 170RPM Reduction ratio 15, 140RPM Reduction ratio 18, 120RPM Reduction ratio 20, 100RPM Reduction ratio 25, 85RPM Reduction ratio 30, 70RPM Reduction ratio 36, 60RPM Reduction ratio 50, 40RPM Reduction ratio 60, 35RPM Reduction ratio 75, 30RPM Reduction ratio 100, 20RPM Reduction ratio 150, 15RPM Reduction ratio 180, 12RPM Reduction ratio 200, 10RPM Package list: 1 x Gear Motor

• A gear motor is a specific type of electrical motor that is designed to produce high UE.
• Supporting clockwise and counterclockwise rotation.
• Using pure copper coil for smooth running and long service life.
• Metal gear with good wear resistance can provide large UE.
• Widely applicable for automatic machinery, small scale assembly line, food machinery, packaging machinery and more.
